INNO Submerged Short Implant

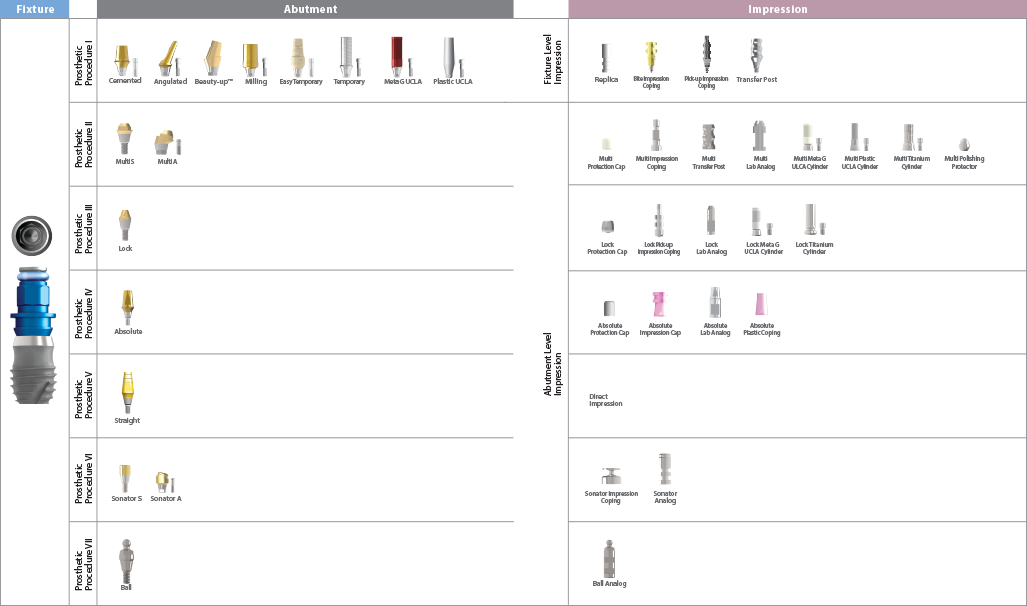

System Flow

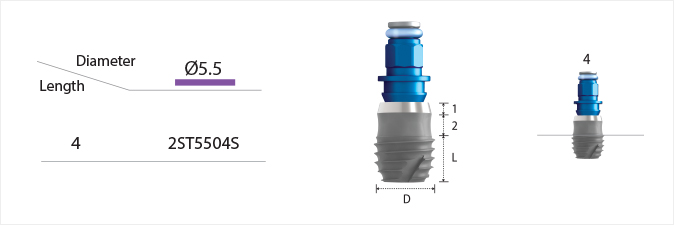

Submerged Short Fixture
Submerged Fixture
Surface Treatment : SLA-SH®
- Interchangeable with hexagonal morse tapered fixture.

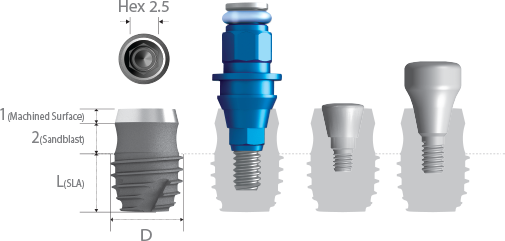

- Internal hex connection (Taper 11°/ Hex 2.5).
Pre-Mount
- Packing Unit : 1 Fixture + 1 Cover Screw + 1 Mount
INNO SUB-SHORT SURGICAL KIT
[KSI001]
- For the INNO Submerged Short Implant System (Sub.).
Drill

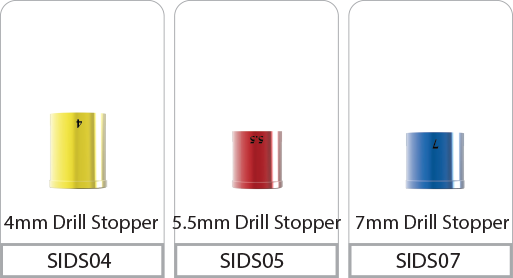

Stopper

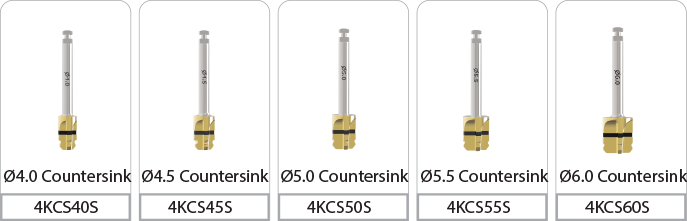

Countersink

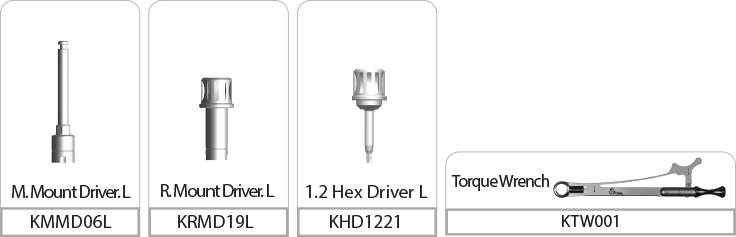

Extension & Driver
Length Marking & Stopper
Actual lengtj of drill : Fixture + 0.5mm.
Drilling Sequence

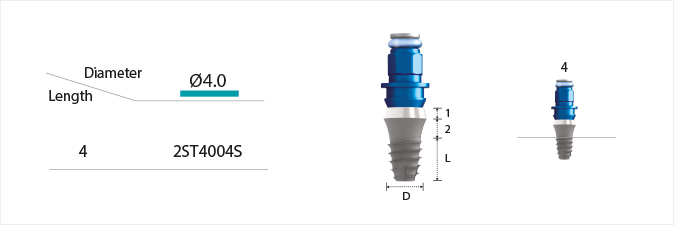

Ø4.0
Ø4.5

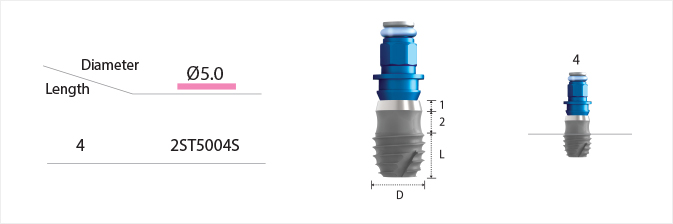

Ø5.0
Ø5.5

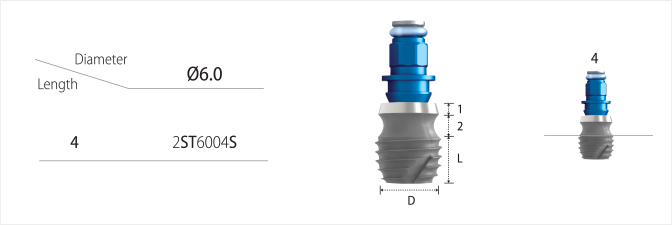

Ø6.0
