COWELL® DIGITAL PRODUCTS

SFIT Ti-Base System

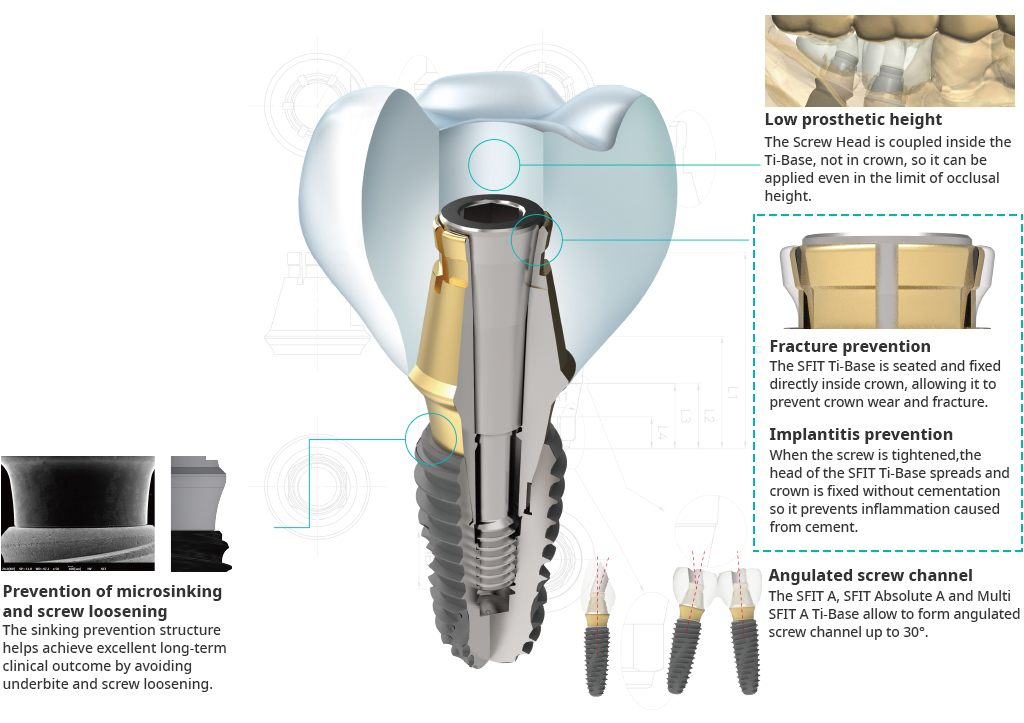

Features of the SFIT Ti-Base System

Cement-free, No Screw Loosening, Perfectly Sealed

  • Cement-free retention prevents side effects from cement.
  • Aesthetic prostheses such as anterior subgingival full zirconia crown with screw retention can be applicable.
  • Easy to apply even when the occlusal height is low.
  • Both digital and conventional solution are provided.
  • The SFIT Ti-Base and crown can be removed from fixture without any damage.

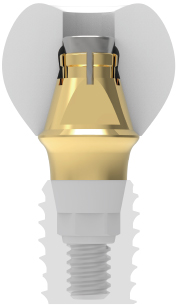

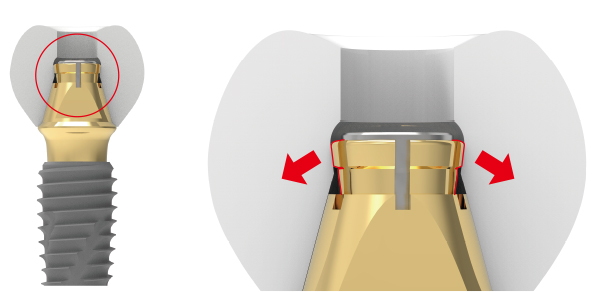

Mechanism of the SFIT Ti-Base System

SPREAD FIT (Spread + FIT = SFIT)

Key mechanism:

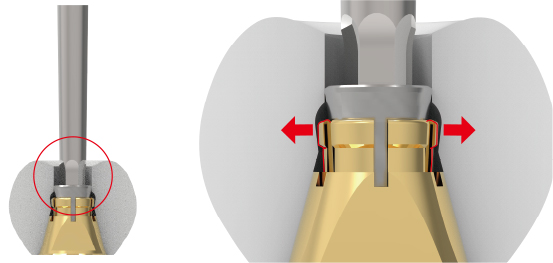

The HEAD of the SFIT Ti-Base Screw gives a force to the POST TOP of the SFIT Ti-Base to be SPREAD and FIT in the undercut of the inner side of the Crown When the SFIT Ti-Base Screw is tightened.

1 Insert the SFIT Ti-Base Screw to the SFIT Ti-Base.

2 Install the Crown on the SFIT Ti-Base with the SFIT Ti-Base Screw inserted in it.

3 Connect the whole assembled components to the Fixture: The POST TOP of the SFIT Ti-Base is not spread yet.

4 Tight the whole assembled components to the Fixture. The POST TOP of the SFIT Ti-Base is being SPREAD.

5 All procedures are completed. The POST TOP of the SFIT Ti-Base is SPREAD and FIT.

Benefits of the SFIT Ti-Base System

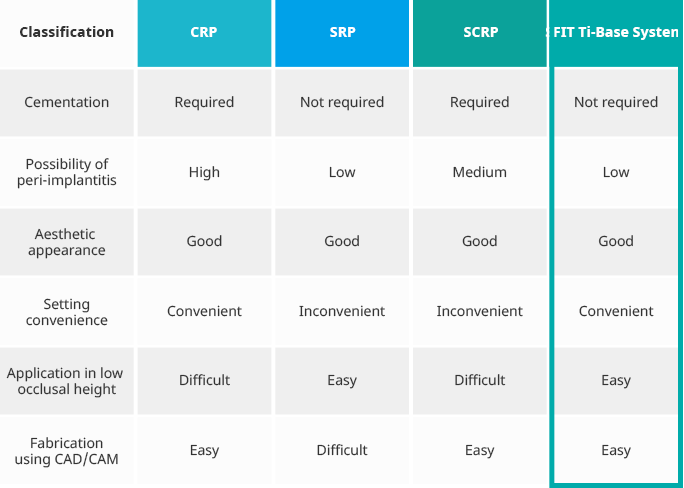

Comparison to other types of prostheses

SFIT VS CRP, SRP & SCRP


SFIT VS Other similar abutments sold in market

Safety of the SFIT Ti-Base System

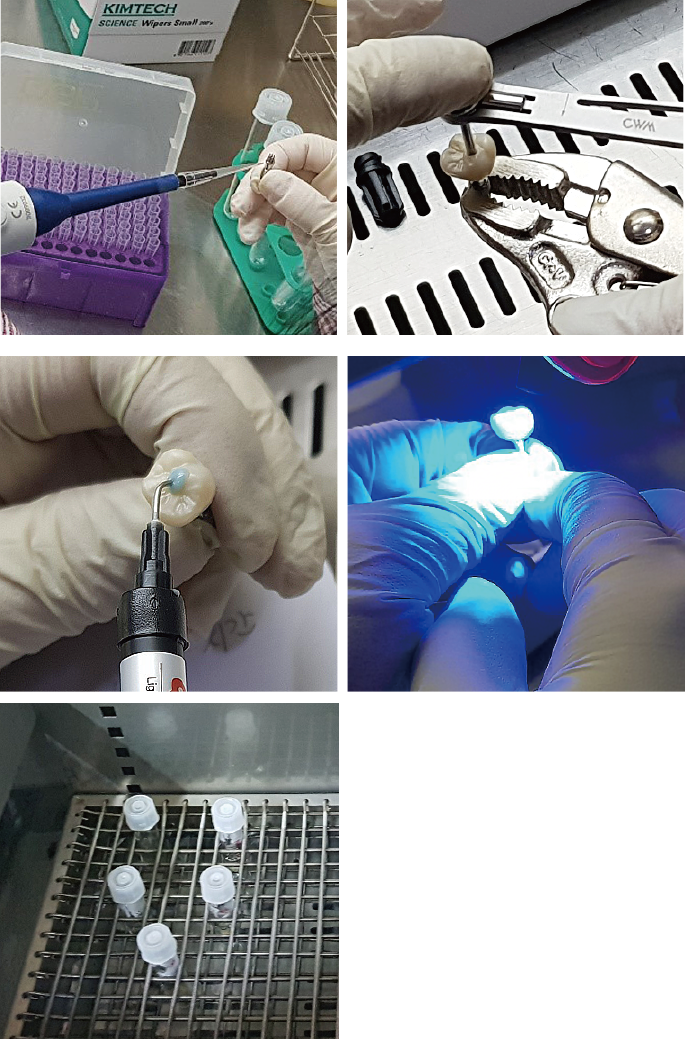

Bacteria test

E.coli solution was applied to the surface of the SFIT Ti-Base, the crown was installed over the SFIT Ti-Base, and the hole of the crown was blocked with resin.

And, it was maintained for 24 hours at 37 °C, the best temperature for E. coli to grow. - Negative, No E.coli detected

Retention test

The crown was not separated by a force of 250Ncm.

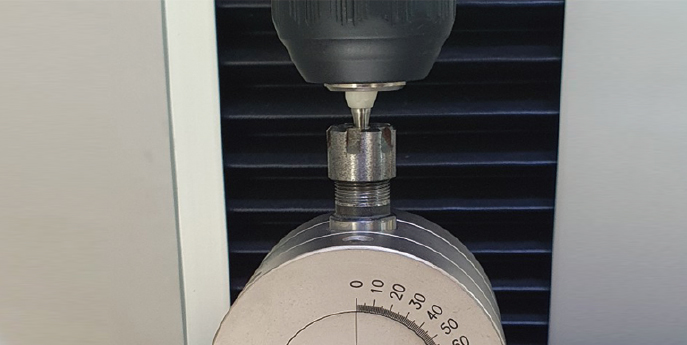

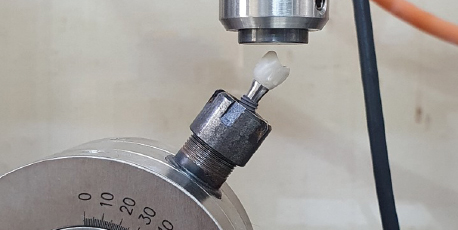

Fatigue test

No fracture or screw loosening took place even by 5,000,000 times of vertical and lateral loading (universal joint) with a force of 250Ncm.

Workflow of the SFIT Ti-Base System

Build convenient digital flow with no restriction using the library provided without CAM template.

Fixture Level Impression

SFIT Ti-Base

Abutment Level Impression

SFIT Absolute Ti-Base / Multi SFIT Ti-Base

Lineup of the Sub. SFIT Ti-Base System

SFIT Ti-Base System

SFIT Absolute Ti-Base System

Multi SFIT Ti-Base System
